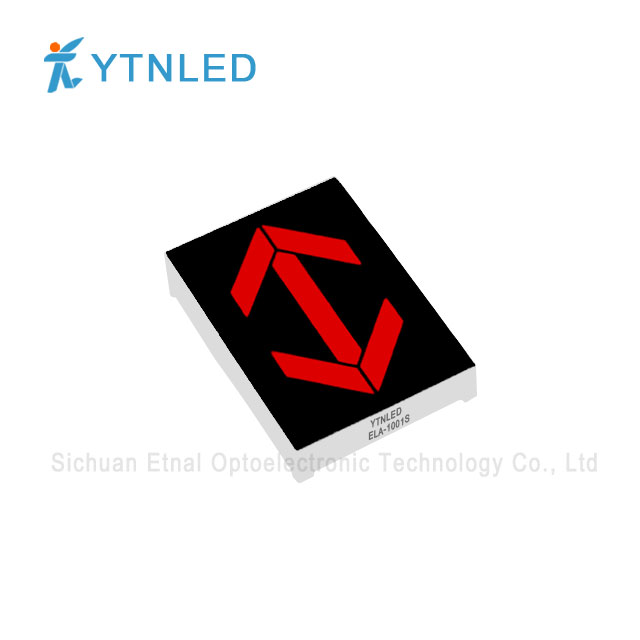

ELA-1001S,O,Y,G,GG,B,W
  • Features:
    • High brightness
    • Low power consumption
    • Long lifetime
    • Easy to install






  • Application:
    • Digital product
    • Instrument panel
    • Household equipment
    • Digital display device






  • Data Sheet



  • Product description

    Character height:1inch.

    Category:Arrow led display.

    Luminous color:Red,Orange,Yellow,Olivine,Emerald,Blue,White.

    Dimensions:32.0x22.0x8.5mm.

    Number of pins:4pins.

    Surface color:Black.

    Epoxy color:White.

    Operating temperature:-35~80℃.


    Product parameters

    Part No. Character height Category Luminous
    color
    Current
    (mA)
    Voltage
    (V)
    Wavelength
    (nm)
    ELA-1001S 1" inch Arrow led display Red 5-20 1.8-2.0 620-640
    ELA-1001O 1" inch Arrow led display Orange 5-20 1.8-2.0 600-610

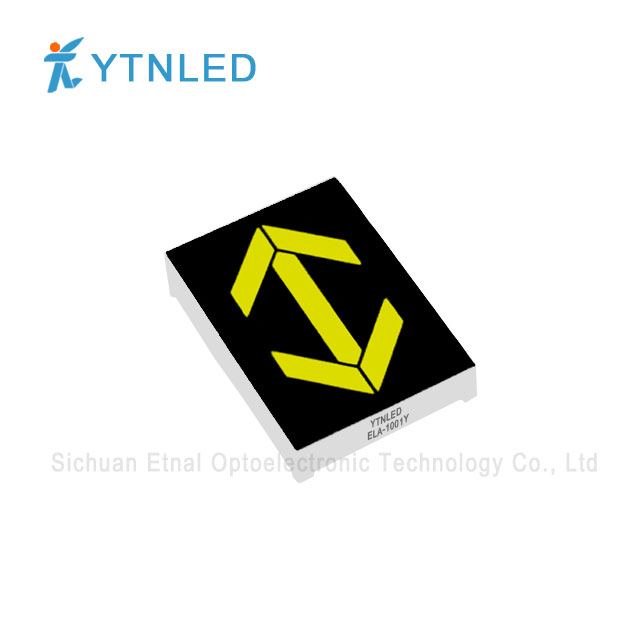

    ELA-1001Y 1" inch Arrow led display Yellow 5-20 1.8-2.0 585-595
    ELA-1001G 1" inch Arrow led display Olivine 5-20 1.8-2.0 565-575

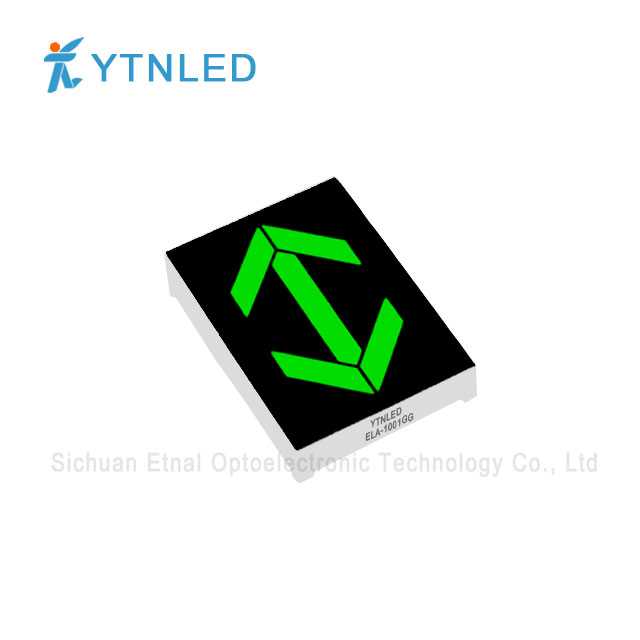

    ELA-1001GG 1" inch Arrow led display Emerald 10-20 2.6-2.8 515-525
    ELA-1001B 1" inch Arrow led display Blue 10-20 2.6-2.8 460-470

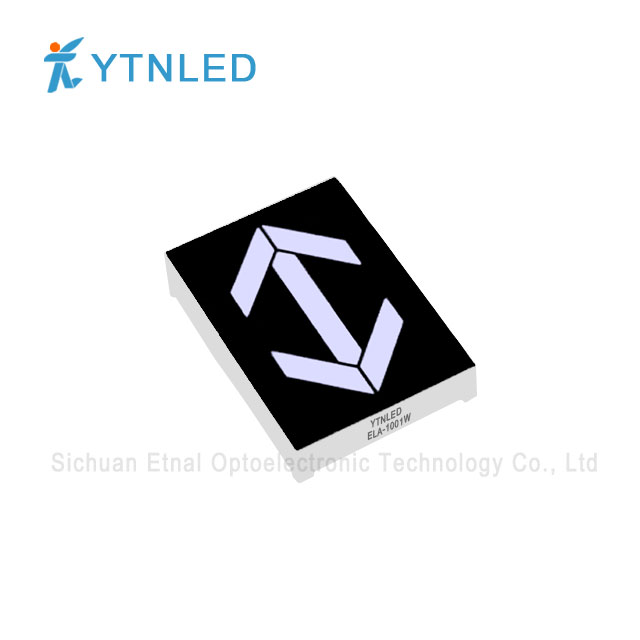

    ELA-1001W 1" inch Arrow led display White 10-20 2.6-2.8 /
    Forward current, IF=20mA
    Note: The above parameters are for reference only,please prevail in kind.

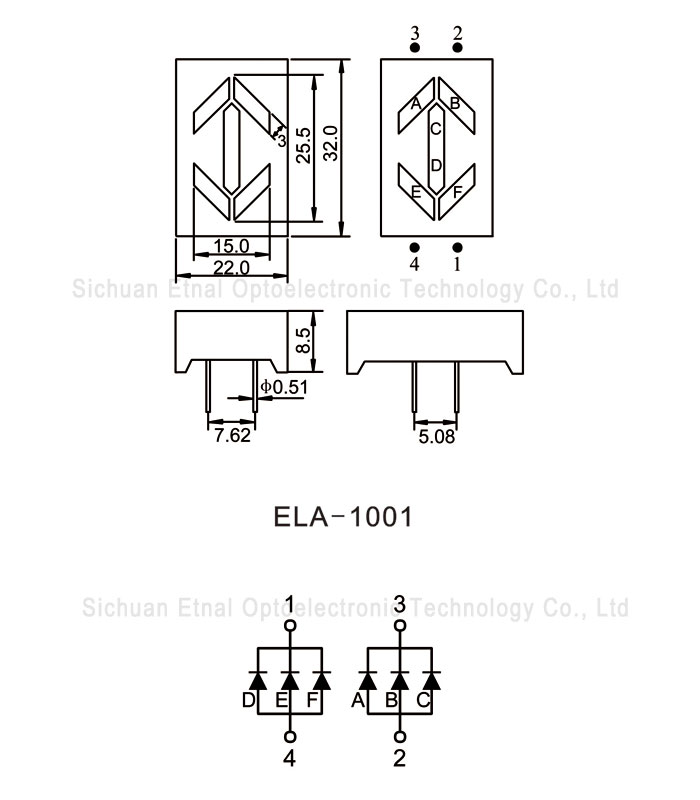

    Package dimension and internal circuit diagram (Tolerance : ±0.2mm)
